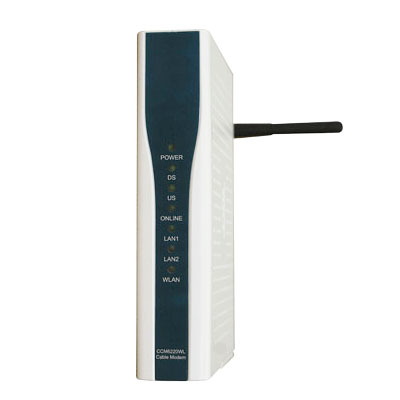

B-6200WL
Feature
Support both US-DOCSIS2.0/1.1 and Euro-DOCSIS2.0/1.1 standards.
Support dual US-DOCSIS/Euro-DOCSIS compatibility on same unit without changing hardware or software.
|
|
B-6200WL
1. General Specifications
1-1. Standard
Support both US-DOCSIS2.0/1.1 and Euro-DOCSIS2.0/1.1 standards.
Support dual US-DOCSIS/Euro-DOCSIS compatibility on same unit without changing hardware or software.
Support BPI/BPI+ communications privacy.
1-2. Temperature Range
Operating 0 to +65 deg. C. 5 to 95% RH
Storage -40 to +70 deg. C. 5 to 95% RH
1-3. Test Conditions: All Specification shall apply over following range unless noted.
T (amb.): +25±2 deg. C. Humidity: 45 to 65% RH
2. Electrical Specifications
2-1. Downstream(Receiver)
2-1-1. US-DOCSIS Spec.
|
Parameter
|
Value
|
|
Center Frequency
|
93 to 855MHz ±30KHz
|
|
Level Range (one channel)
|
-15dBmV to +15dBmV
|
|
Modulation Type
|
64QAM and 256QAM
|
|
Transmit Speed
|
30Mbps(64QAM) and 42Mbps(256QAM)
|
|
Bandwidth
|
6MHz
|
|
Total Input Power (40--900MHz)
|
<30dBmV
|
|
Input (load) Impedance
|
75 ohms
|
|
Input Return Loss
|
>6dB (88 to 860MHz)
|
|
Connector
|
F connector per [ISO-169-24]
|
2-1-2. Euro-DOCSIS Spec.
|
Parameter
|
Value
|
|
Center Frequency
|
112 to 858MHz±30KHz
|
|
Level Range (one channel)
|
-17dBmV to +17dBmV
|
|
Modulation Type
|
64QAM and 256QAM
|
|
Transmit Speed
|
41Mbps(64QAM) and 55Mbps(256QAM)
|
|
Bandwidth
|
8MHz
|
|
Total Input Power (80--862MHz)
|
<30dBmV
|
|
Input (load) Impedance
|
75 ohms
|
|
Input Return Loss
|
>6dB (85 to 862MHz)
|
|
Connector
|
F connector per [ISO-169-24]
|
2-2. Upstream (Transmitter)
2-2-1. US-DOCSIS Spec.
|
Parameter
|
Value
|
|
Frequency
|
5 to 42 MHz edge to edge
|
|
Level Range (one channel)
|
TDMA:
+8 to +54dBmV (32QAM, 64QAM)
+8 to +55dBmV (8QAM, 16QAM)
+8 to +58dBmV (QPSK)
S-CDMA:
+8 to +53dBmV (all modulations)
|
|
Modulation Type
|
QPSK, 8QAM, 16QAM, 32QAM, 64QAM, and 128QAM
|
|
Modulation Rate (nominal)
|
TDMA: 160, 320, 640, 1280, 2560 and 5120KHz
S-CDMA: 1280, 2560 and 5120KHz
|
|
Transmit Speed(max)
|
30.72M bps
|
|
Bandwidth
|
TDMA: 200, 400, 800, 1600, 3200, 6400KHz
S-CDMA: 1600, 3200, 6400KHz
|
|
Output Impedance
|
75 ohms
|
|
Output Return Loss
|
>6 dB (5--42MHz)
|
|
Connector
|
F Connector per [ISO-169-24]
|
2-2-2. Euro-DOCSIS Spec.
|
Parameter
|
Value
|
|
Frequency
|
5 to 65 MHz edge to edge
|
|
Level Range (one channel)
|
TDMA:
+8 to +54dBmV (32QAM, 64QAM)
+8 to +55dBmV (8QAM, 16QAM)
+8 to +58dBmV (QPSK)
S-CDMA:
+8 to +53dBmV (all modulations)
|
|
Modulation Type
|
QPSK, 8QAM, 16QAM, 32QAM, 64QAM, and 128QAM
|
|
Modulation Rate (nominal)
|
TDMA: 160, 320, 640, 1280, 2560 and 5120KHz
S-CDMA: 1280, 2560 and 5120KHz
|
|
Transmit Speed(max)
|
30.72M bps
|
|
Channel Bandwidth
|
TDMA: 200, 400, 800, 1600, 3200, 6400KHz
S-CDMA: 1600, 3200, 6400KHz
|
|
Output Impedance
|
75 ohms
|
|
Output Return Loss
|
>6 dB (5--65MHz)
|
|
Connector
|
F Connector per [ISO-169-24]
|
2-3. Interface
2-3-1. Ethernet Interface IEEE 802.3 Direct Ethernet Interface
2-3-2. Cable Interface F-Type Connector female 75 ohm
2-3-3. USB Interface B-Type Socket male
|
